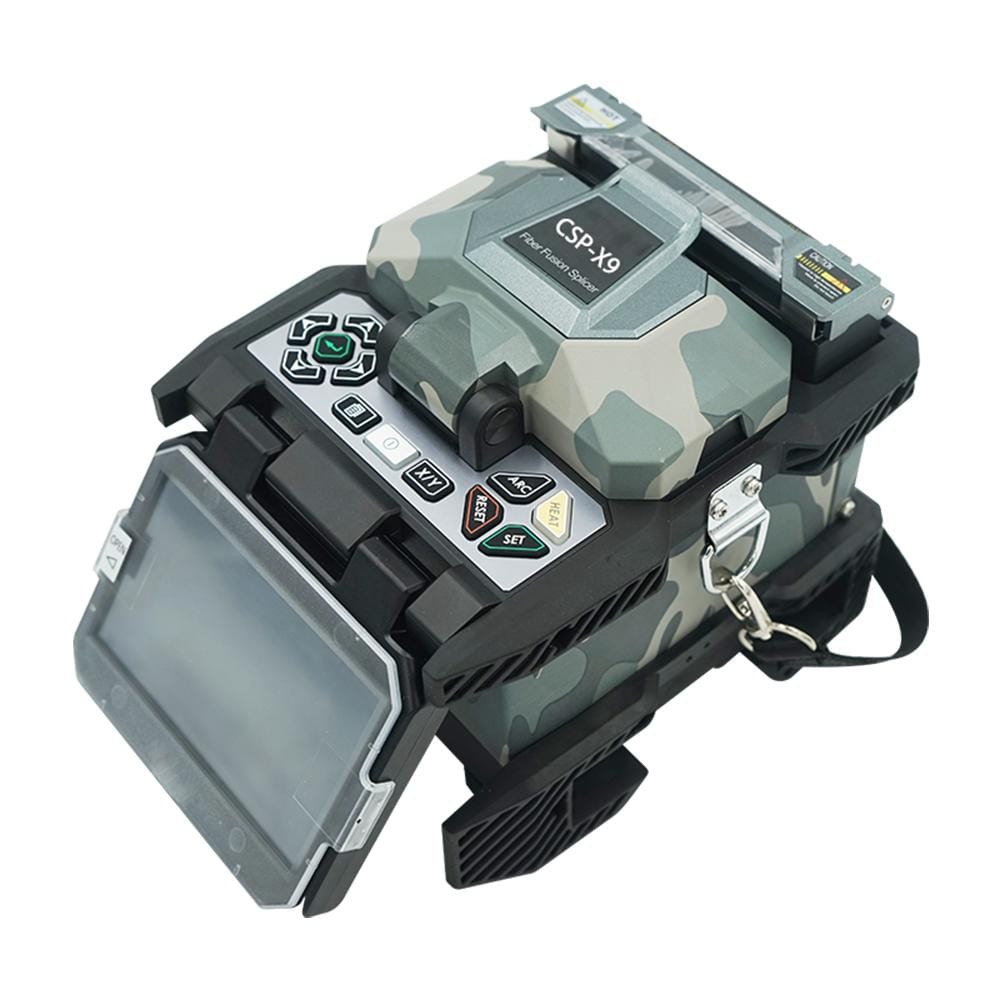

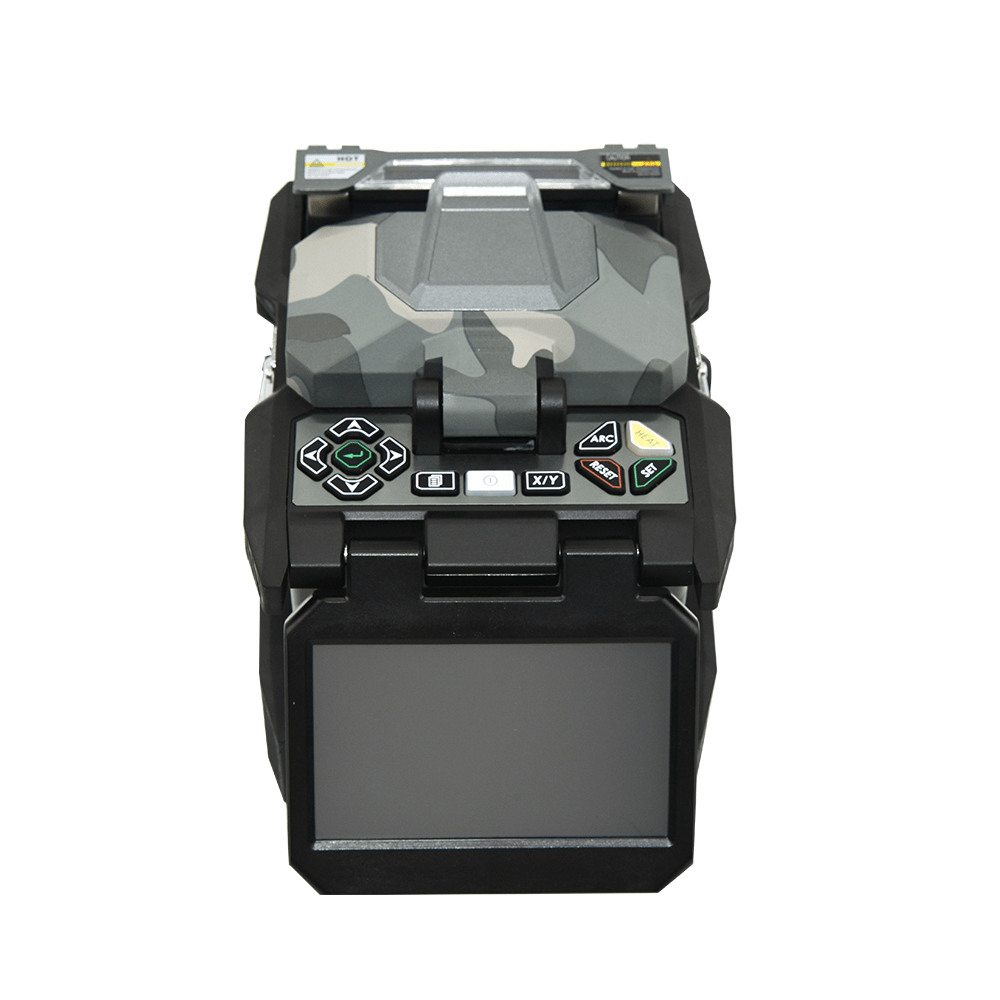

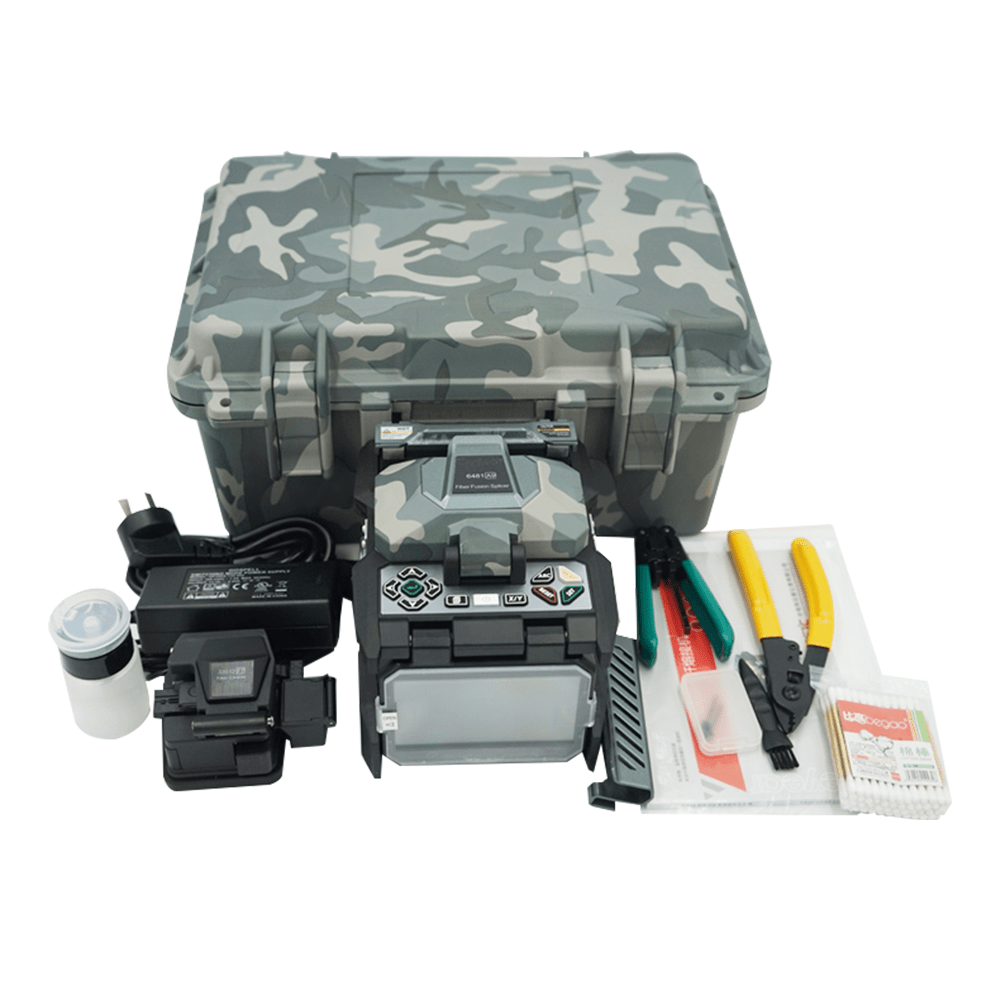

6 motors Fiber Fusion Splicer CSP-X9
- Category: feature, Fusion Splicer&Cleaver
- Order within

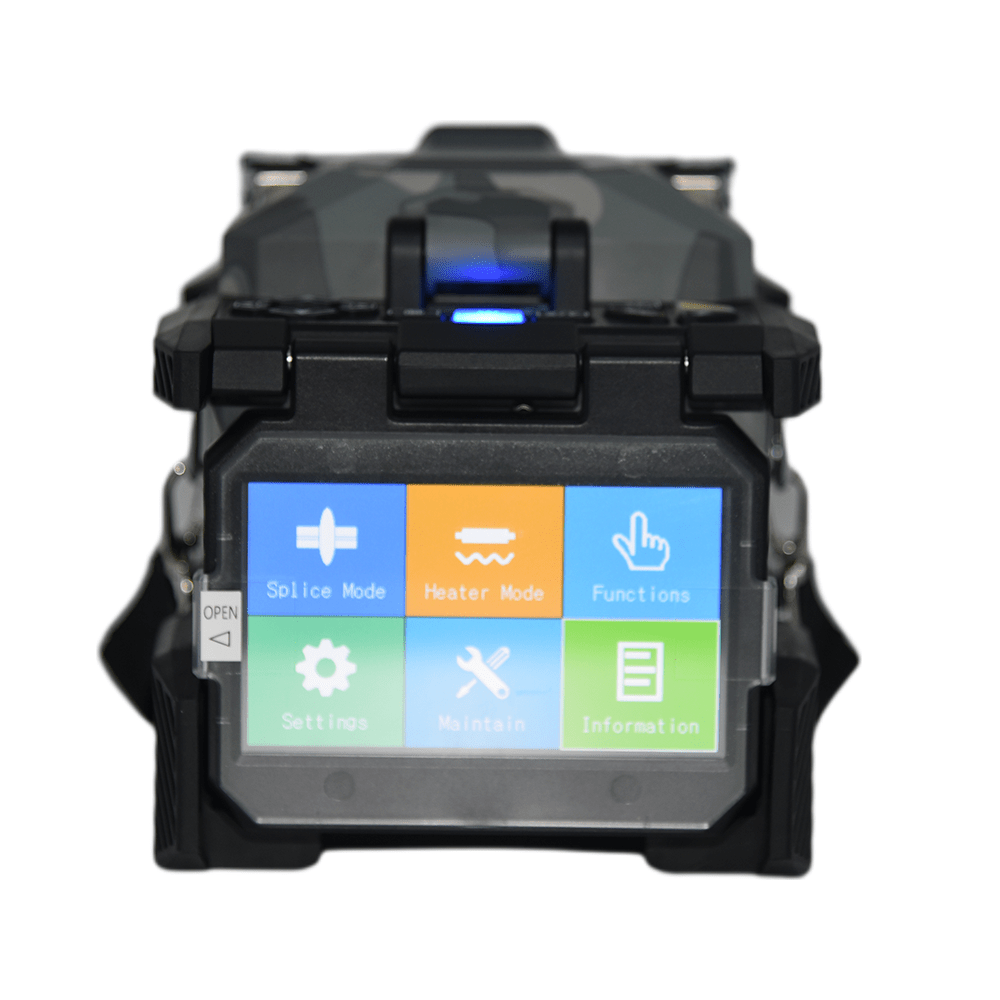

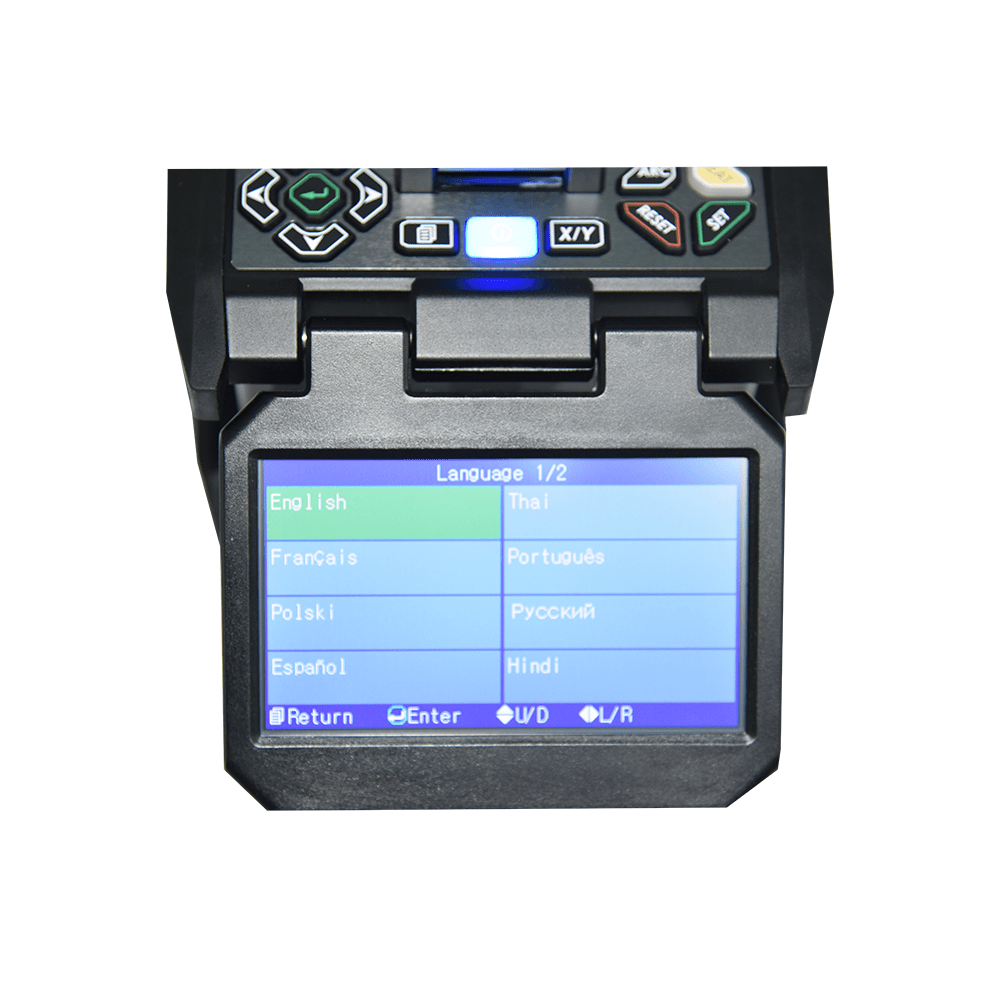

CSP-X9 Optical Fiber Fusion Splicer is small size optical fiber fusions splicer, mainly used for fusion and protection of common communications fibers. The rich functionality and ultra-low splice loss make the splicer adaptive to fiber splicing in various environments. It is featured with small size, light weight, high reliability, greater environmental adaptability, dust-resistant, water-resistant and shock-resistant. Multiple fusion modes and heating modes are available to meet diversified customers’ demands. Fiber loading becomes more convenient and accurate thanks to the ceramic V-groove of high precision, which is easy for clean and maintenance. The splicer is capable of dual-directional fusion. The monitor is a touch screen delivers fresh designed graphical interfaces, which are simple for operation. The modular pluggable lithium-ion battery of large-capacity ensures long-time field operations. The auto environment compensation system greatly improves adaptability of the splicer to hostile environments, so that low-loss splice can be remained consistent in various environments.
CSP-X9 Optical Fiber Fusion Splicer is small size optical fiber fusions splicer, mainly used for fusion and protection of common communications fibers. The rich functionality and ultra-low splice loss make the splicer adaptive to fiber splicing in various environments. It is featured with small size, light weight, high reliability, greater environmental adaptability, dust-resistant, water-resistant and shock-resistant. Multiple fusion modes and heating modes are available to meet diversified customers’ demands. Fiber loading becomes more convenient and accurate thanks to the ceramic V-groove of high precision, which is easy for clean and maintenance. The splicer is capable of dual-directional fusion. The monitor is a touch screen delivers fresh designed graphical interfaces, which are simple for operation. The modular pluggable lithium-ion battery of large-capacity ensures long-time field operations. The auto environment compensation system greatly improves adaptability of the splicer to hostile environments, so that low-loss splice can be remained consistent in various environments.
|
Model |
CSP-X9 |
|
Alignment method |
Six-motor drive, precise core alignment and precise cladding alignment |
|
Applicable fibers |
Any common optical fibers, rubber-insulated fibers and Jumpers that meet requirements of ITU-TG.651-653, ITU-TG.655 and ITU-TG.657 |
|
Optical fiber diameter |
Cladding: 80-150µm, coating layer. 0.1~3mm |
|
Cutting length |
5-16mm (coated optical fiber diameter≤250µm) ; 10mm (coated optical fiber diameter: 0.25-3mm) |
|
Fusion splicing consumption (typical value) |
0.02dB (SMF) : 0.01dB (MMF) : 0.04dB (DSF) : 0.04dB(NZDSF) |
|
Return loss |
Better than 60dB |
|
Fusion Splicing time(typical value) |
7s |
|
Heatlllg tlllle (typical value) |
18s |
|
Pulling force test |
1.96-2.25N |
|
Thermal shrinkage tube |
60mm, 40mm and a sen es of thermal shrinkage tubes |
|
Graphical display |
High-performance 4.3 inch LCD |
|
Magnification time |
320 times/88 times |
|
Fusion splicing record |
10000 groups |
|
Battery capacity |
11.1 V, 6800mAh，typical value of fusion splicing and thermal cycle 220 times |
|
Battery service life |
Cycle charging times reach 300-500, can be replaced by customers |
|
Electrode service life |
Typical value is 4000 times, can be replaced by customers |
|
Construction lighting |
Built-in lights with high-brightness and wide lighting area |
|
Working environment |
Temp:-10-50℃; hum. 0-95%RH, height above sea level:0-6000m |
|
Operation interfaces |
GUI graphical operation interfaces |
|
External power |
AC: AC100-240V, 60Hz, 0-1.SA; DC: DC10-15V |
|
External port |
USB /SD |
|
D1mens1ons |
120mm (W) x130mm CH) xl54mm (D) (w1thout rubber anti-vibration pad) |
|
Weight |
1.49kg (host engine) , 0.34kg (battery) |
