CCR1036-12G-4S
- Product SKU: E3CR12G4S
- Category: Core Router, Switch&Router
- Order within
1U rackmount, 12x Gigabit Ethernet, 4xSFP cages, LCD, 36 cores x 1.2GHz CPU, 4GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6, Dual PSU
CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.

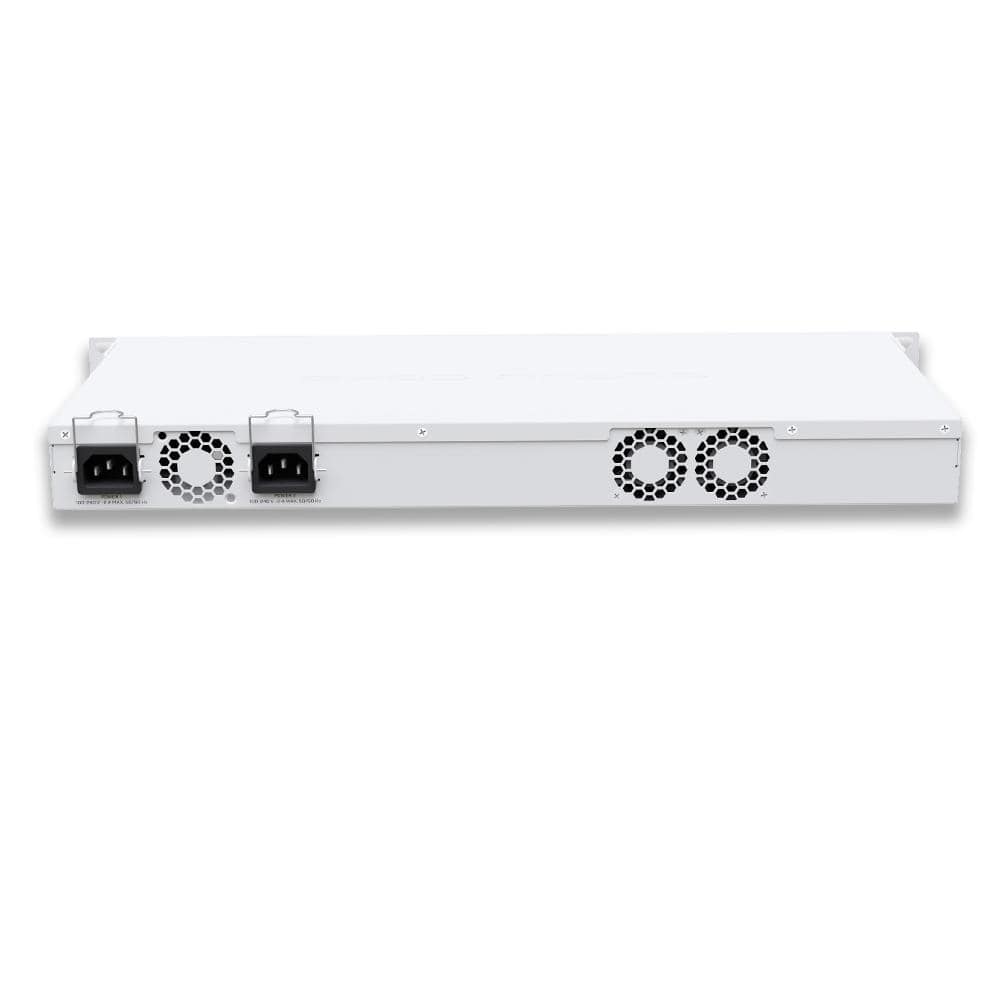

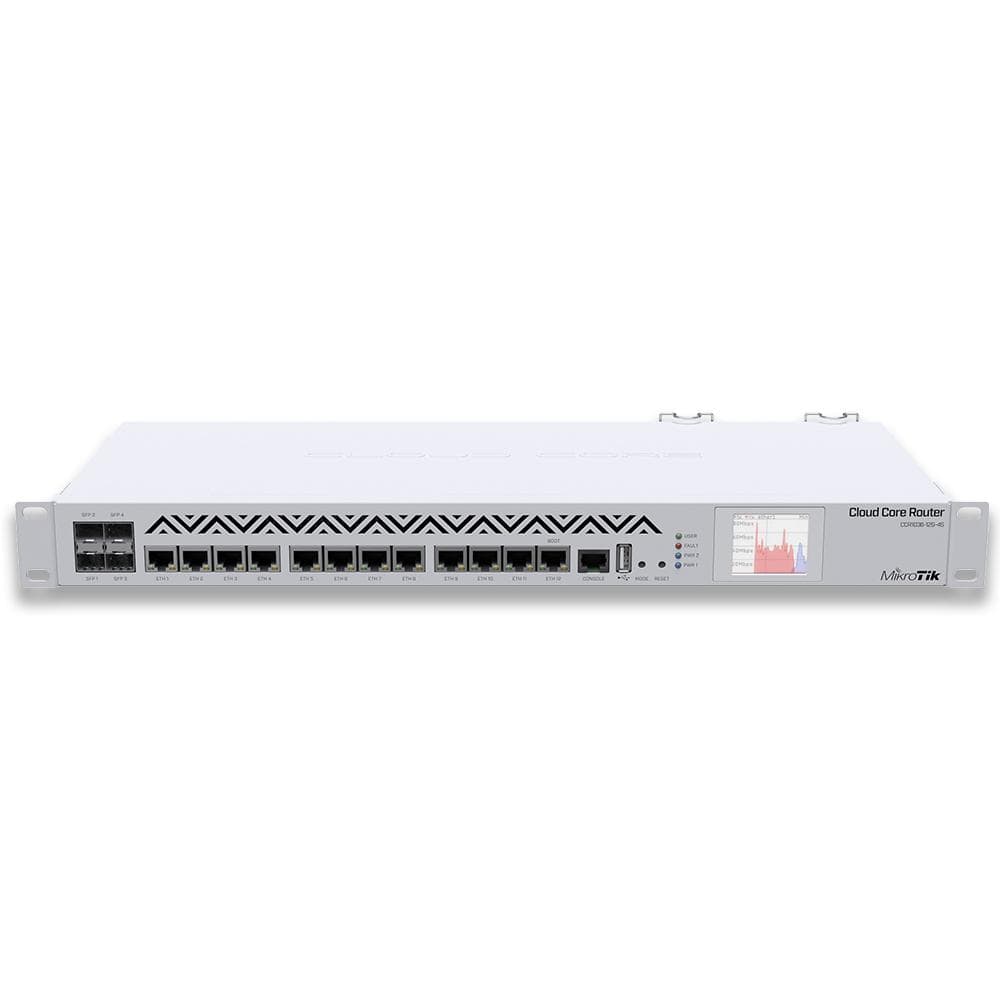

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.
The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
1U rackmount, 12x Gigabit Ethernet, 4xSFP cages, LCD, 36 cores x 1.2GHz CPU, 4GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6, Dual PSU
CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.
The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
|
Product code |
CCR1036-12G-4S |
|
Architecture |
TILE |
|
CPU |
TLR4-03680 |
|
CPU core count |
36 |
|
CPU nominal frequency |
1.2 GHz |
|
Dimensions |
443 x 193 x 44 mm |
|
RouterOS license |
6 |
|
Operating System |
RouterOS |
|
Size of RAM |
4 GB |
|
Storage size |
1 GB |
|
Storage type |
NAND |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-20°C to 60°C |
|
IPsec hardware acceleration |
Yes |
|
Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Max power consumption |
60 W |
|
FAN count |
2 |
|
10/100/1000 Ethernet ports |
12 |
|
SFP DDMI |
Yes |
|
SFP ports |
4 |
|
Serial port |
RJ45 |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
|
CPU temperature monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Mode button |
Yes |
