CCR1072-1G-8S+

Available: In Stock
$0.00$0.00
Compare
Other people want this. 6 people have this in their carts right now.
  • Want it delivered by Thursday, 26 December
  • Order within
    05Hours56Minutes44Seconds

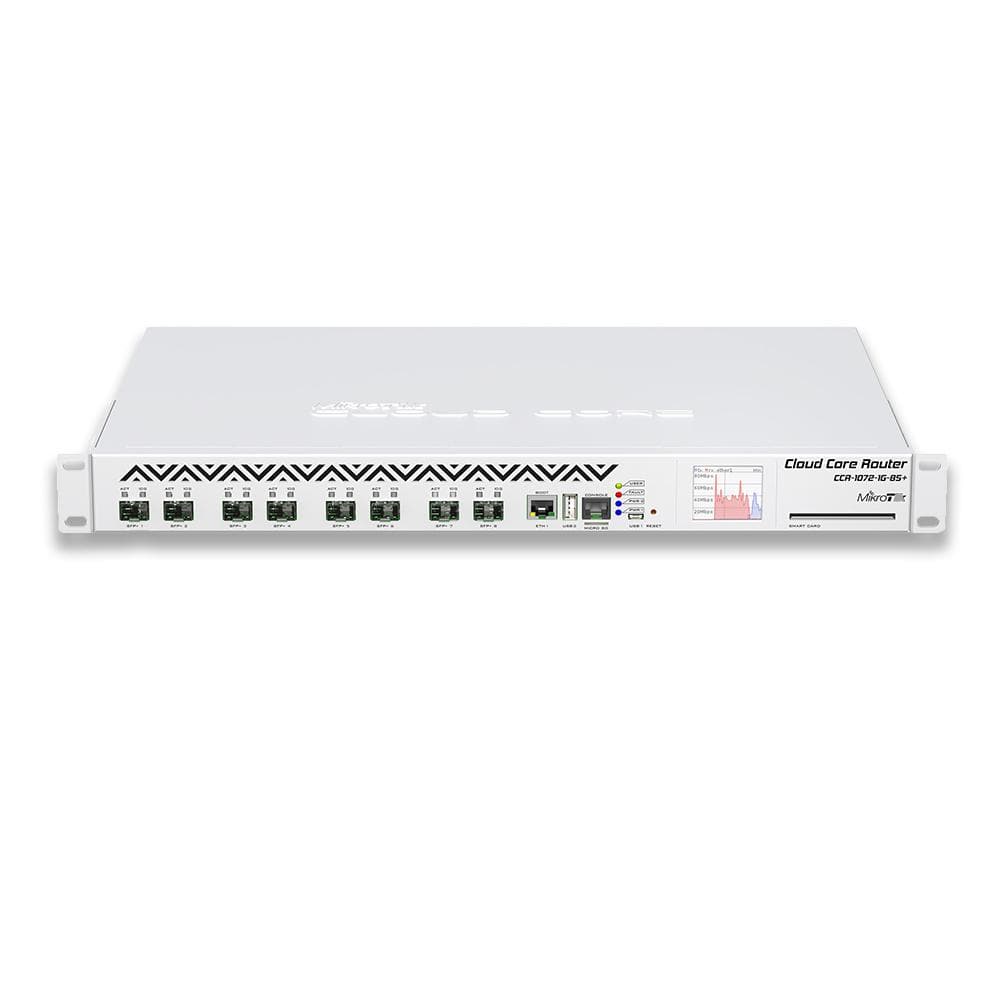

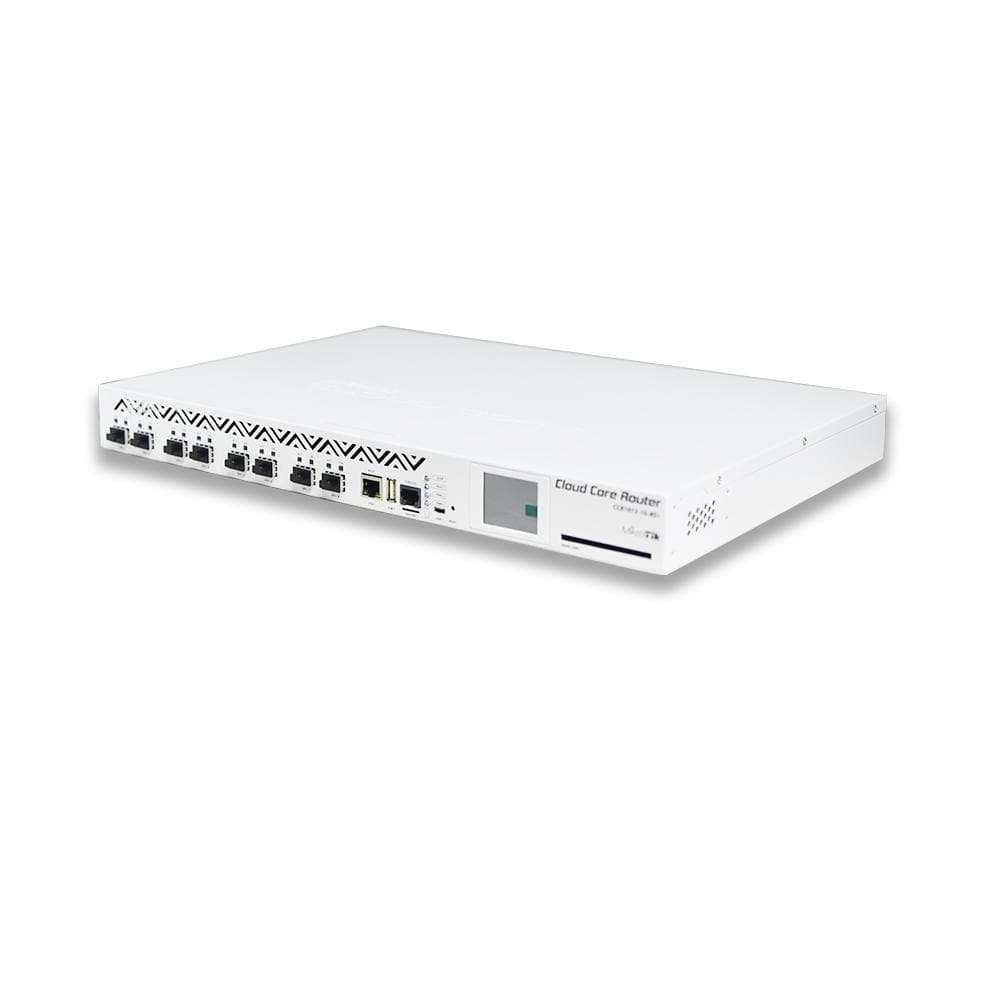

1U rackmount,8x SFP+ ports,16GB ECC RAM,Ports directly connected to CPU microSD and 2x M.2,over 120 million pps packet throughput,up to 80 Gbps throughput,72 core CPU,1 GHz clock per core,State of the art TILE GX architecture.

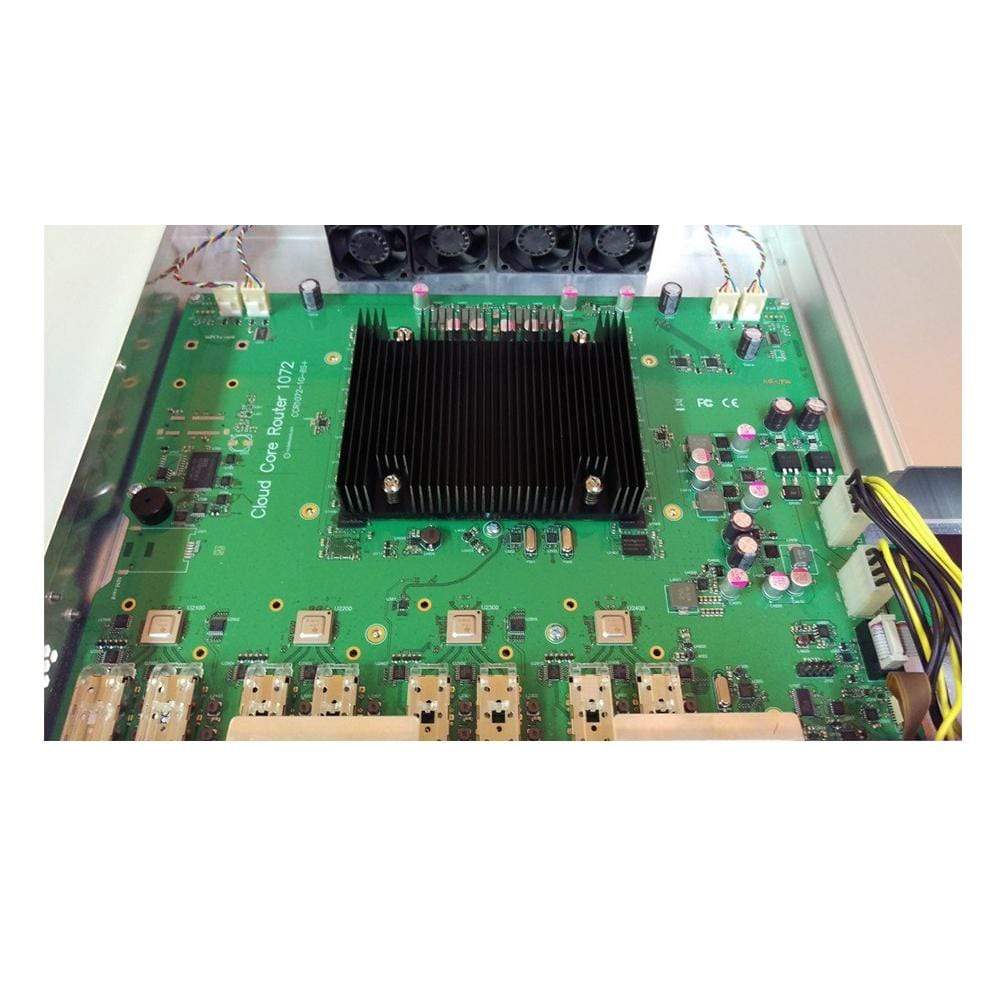

Our new flagship router, the CCR1072, is powered by a Tilera 72 core CPU, each core is clocked at1GHz, and to fully utilise this power, the CCR1072 is equipped with eight independently connected 10G SFP+ ports.

Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.The unit comes equipped with two removable (hot plug) power supplies for redundancy, smart card slot, eight SFP+ ports and 16GB of built in ECC RAM.

The CCR1072 also has two built-in M.2 slots, microSD and 2x USB for adding storage, to use for proxy cache, user manager and other features. The M.2 slots accept 800mm Key-M x4 PCIe 2.0 modules.

1U rackmount,8x SFP+ ports,16GB ECC RAM,Ports directly connected to CPU microSD and 2x M.2,over 120 million pps packet throughput,up to 80 Gbps throughput,72 core CPU,1 GHz clock per core,State of the art TILE GX architecture.

Our new flagship router, the CCR1072, is powered by a Tilera 72 core CPU, each core is clocked at1GHz, and to fully utilise this power, the CCR1072 is equipped with eight independently connected 10G SFP+ ports.

Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.The unit comes equipped with two removable (hot plug) power supplies for redundancy, smart card slot, eight SFP+ ports and 16GB of built in ECC RAM.

The CCR1072 also has two built-in M.2 slots, microSD and 2x USB for adding storage, to use for proxy cache, user manager and other features. The M.2 slots accept 800mm Key-M x4 PCIe 2.0 modules.

Product code

CCR1072-1G-8S+

CPU nominal frequency

1 GHz

CPU core count

72

Size of RAM

16 GB

Storage

128 MB Onboard NAND, also see expansion

10/100/1000 Ethernet ports

1

Power supply

2x IEC C14 standard connectors 110/220V (Two redundant PSU)

Supported input voltage

12 V

CPU temperature monitor

Yes

PCB temperature monitor

Yes

Voltage Monitor

Yes

Current monitor

Yes

Dimensions

443 x 315 x 44 mm, weight: 3.8 kg, weight with packaging: 5.125 kg

License level

6

Operating System

RouterOS

CPU

Tilera Tile-Gx72 CPU

Max Power consumption

125 W

Display

Color LCD, touchscreen

SFP

8x 10G Ethernet SFP+ cages (Mini-GBIC; SFP module not included), DDMI support

Expansion

1x microUSB 2.0, 1x regular USB 2.0, full size Smart Card slot, microSD slot, 2x M.2 slots with x4 PCIE 2.0, Key-M, module size support: 2242,2260,2280

Serial port

RJ45
