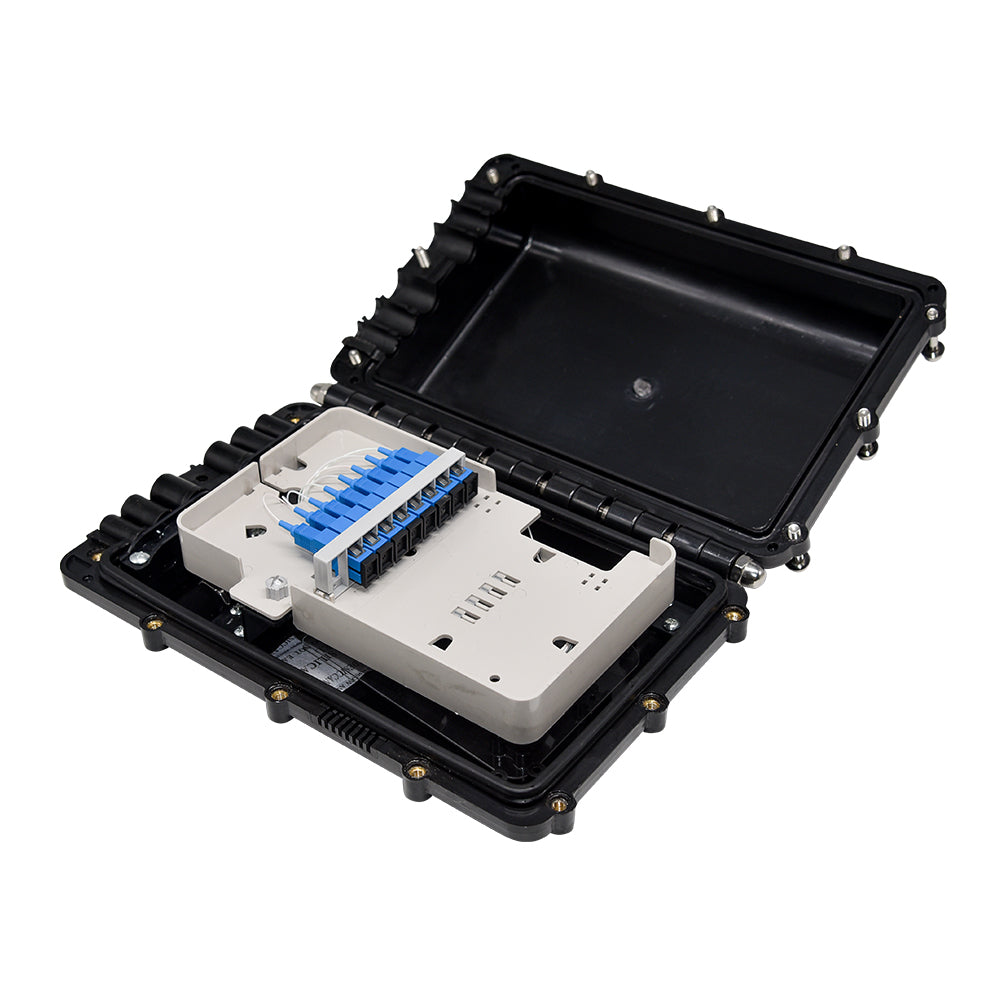

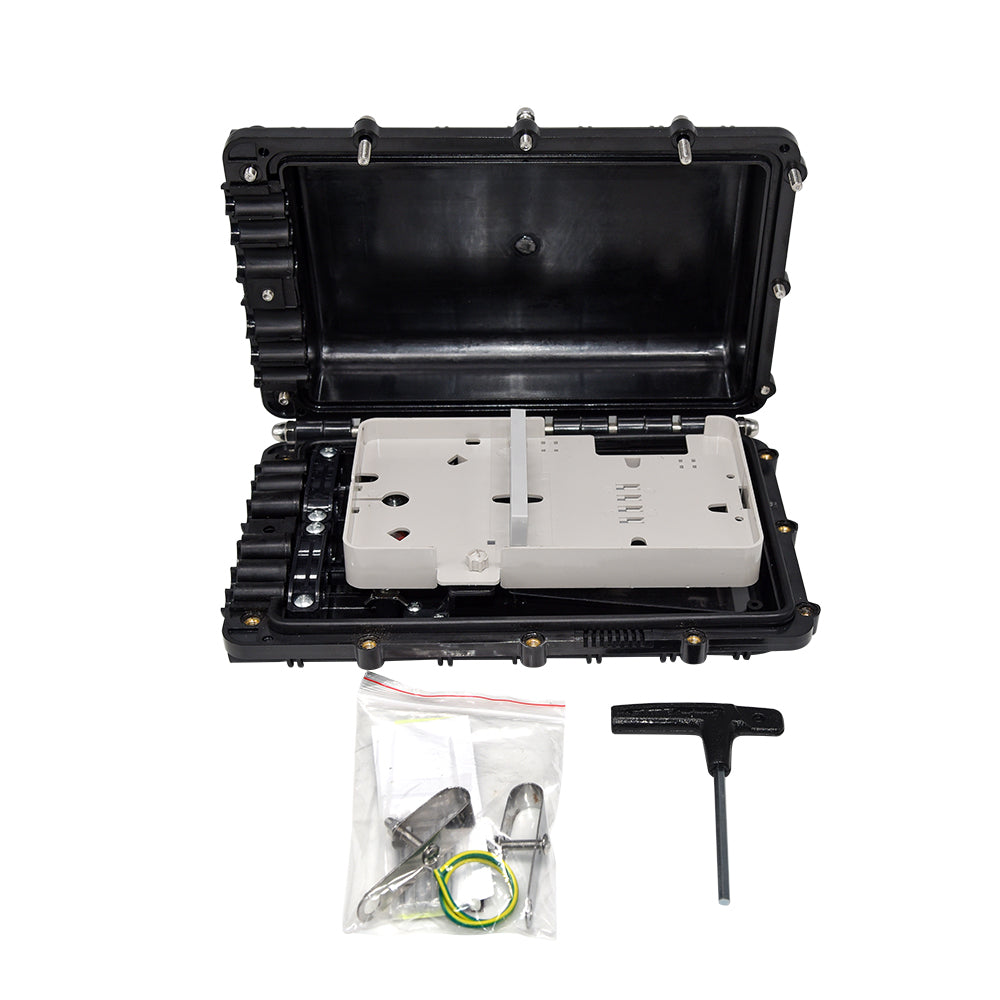

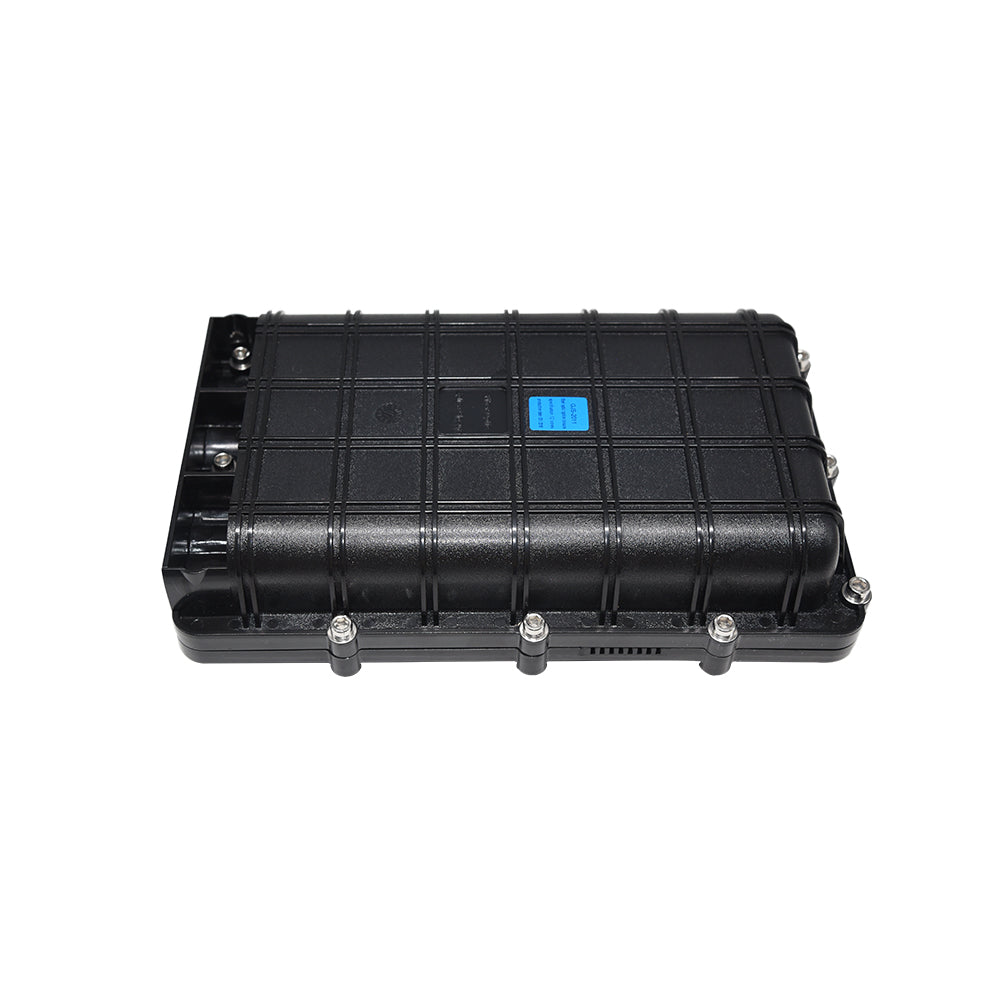

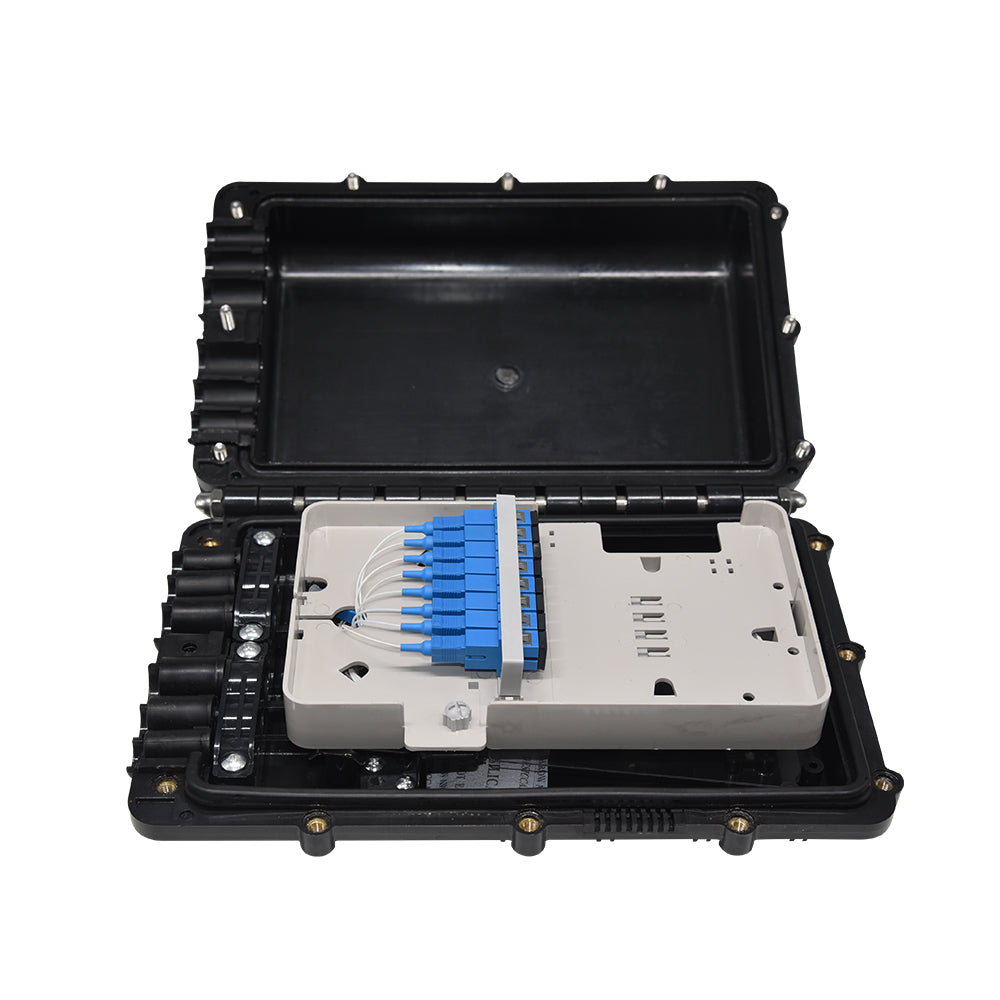

GPJ-X Horizontal Fiber Optic Joint Box
- Category: Fiber Optical Splice Closure
- Order within
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65℃.
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65℃.
|
Outside dimension (L×W×H) |
323×202×86 (mm) |
|
Weight (excluding outside box) |
2650g – 2800g |
|
Number of inlet/outlet ports |
3 (pieces) on each side |
|
Diameter of fiber cable |
Φ8—Φ20 (mm) |
|
Capacity of FOSC |
Bunchy: SC/8 (Cores),LC/16 (Cores) |
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
|
|
1 |
Housing |
1 set |
Protecting fiber cable splices in whole |
Internal diameter: 240×148×76(mm) |
|
|
2 |
Seal fitting |
1 set |
Sealing between FOSC cover and FOSC bottom |
|
|
|
3 |
Port plug |
6 pieces |
Sealing empty ports |
|
|
|
4 |
Pressure testing valve |
1 set |
After injecting air, it is used for pressure testing and sealing testing |
Configuration as per requirement |
|
|
5 |
Earthing deriving device |
1 set |
Deriving metallic components of fiber cable in FOSC for earthing connection |
Configuration as per requirement |
|
|
No. |
Name of accessories |
Quantity |
Usage |
Remarks |
|
1 |
Heat shrinkable protective sleeve |
|
Protecting fiber splices |
Configuration as per capacity |
|
2 |
Nylon tie |
|
Fixing fiber with protective coat |
Configuration as per capacity |
|
3 |
Insulation tape |
1 roll |
Enlarging diameter of fiber cable for easy fixing |
|
|
4 |
Desiccant |
1 bag |
Put into FOSC before sealing for desiccating air. |
|
|
5 |
Seal tape |
1 roll |
Enlarging diameter of fiber cable which fits in with seal fitting |
Configuration as per specification |
|
6 |
Hanging hook |
1 set |
For aerial use |
|
|
7 |
Earthing wire |
1 piece |
Putting through between earthing devices |
|
|
8 |
Abrasive cloth |
1 piece |
Scratching fiber cable |
|
|
9 |
Labeling paper |
1 piece |
Labeling fiber |
|
|
10 |
Special wrench |
2 pieces |
Fixing bolts, tightening nut of reinforced core |
|
|
11 |
Measuring paper |
1 piece |
To measure circle, of which its diameter is enlarged with seal tape |
|
|
12 |
Buffer tube |
To be decided by customers |
Hitched to fibers and fixed with FOST, managing buffer |
Configuration as per requirement |
